Product Description

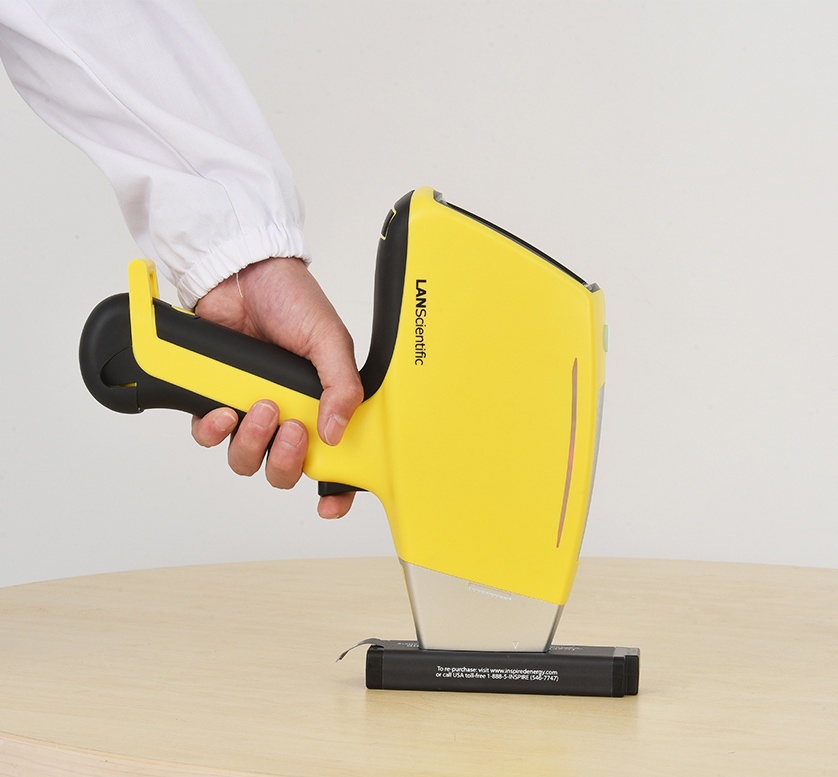

TrueX TCB Ternary Battery Analyzer is combined with electronics, microelectronics, semiconductor and several technologies such as computer software, developed the XRF analyzer for used batteries, battery cathode material is suitable for elements quantitative and qualitative analysis. It has the advantages of rapid, efficient, non-destructive, durable. It is the ideal tool for ternary battery material manufacturers, distributors and scrap recyclers.
Technical Parameters
Weight |
1.6KG (with battery) |
Size |
254×79×280mm(L×W×H) |
Excitation source |
Up to 50KV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
Detector |
BOOST Si-pin |
Display System |
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
|
Data Processing |
Built-in 32GB storage.
USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument
|
Heat dissipation |
The instrument is equipped with a special T-slot cooling device to improve the heat dissipation performance of the instrument, and there is no need to frequently wait for the detector to cool down |
Security |
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
|
Power Supply System |
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery
the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
|
|
