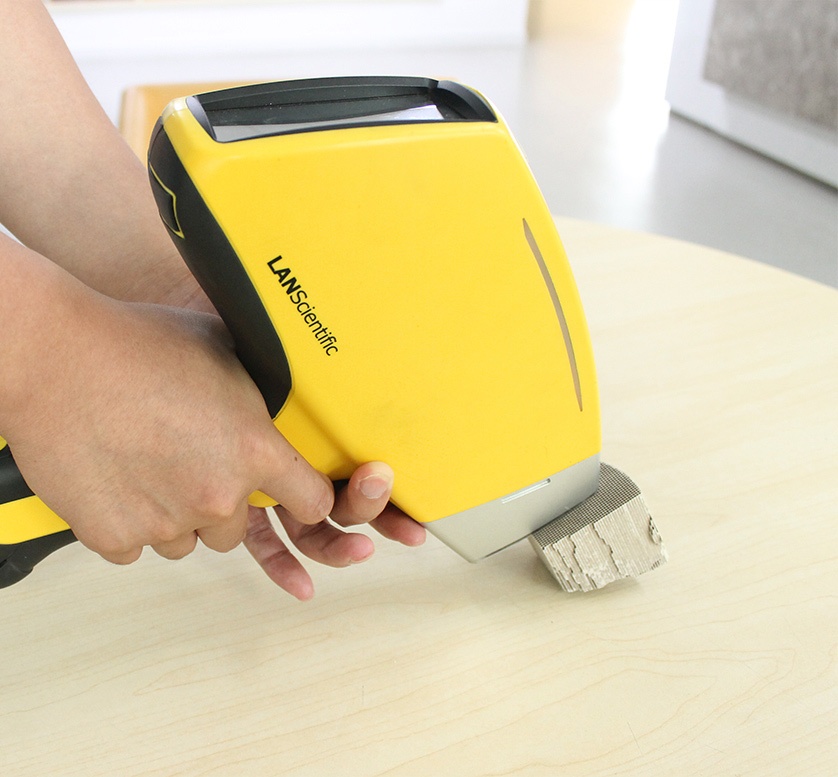

Product name : TrueX 500/TrueX 500S handheld XRF spectrometer car catalyst analyzer
Product No. : TrueX 500/TrueX 500S
←[Previous Product]              [Next Product]→

  Details:
Product Description

Most of catalyst forPt andPd, Rh, and other rare metals, different types of catalytic converter contains different levels and types of precious metals, due to which the value of precious metals, for it is very important for the quality detection and recovery appraisal, therefore the precious metal content of the ternary catalysts, test equipment is necessary.

TrueX handheld car catalyst analyzer can be used to accurately measure platinum, palladium, rhodium and other elements in terraditional catalytic converters, providing rapid material composition analysis information in the field, with high accuracy, speed, and nondestructive advantages.


Technical Parameters
Weight 1.6KG (with Battery)
Size 254×79×280mm(L×W×H)
Excitation source Up to 50KV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range Mg—U
Detector Si-pin/SDD
Display

4.3 inches industrial grade resistance touch screen

Automatically adjust display brightness according to external environment

Data Processing

Built-in 32GB storage

USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument

Lauguage Chinese, English, etc.
Security

Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection

Waterproof, dustproof and shockproof carrying case

LANScientific special safety rope

Power Supply

Intelligent battery with MSBUS, can directly check the remaining capacity of the battery

the battery complies with the air dangerous goods transport regulations

A single battery can work for about 8 hours
