Product name : Industrial Online Residual Chlorine Analyzer
Product No. : CL-2059
←[Previous Product]              [Next Product]→

  Details:
Overview

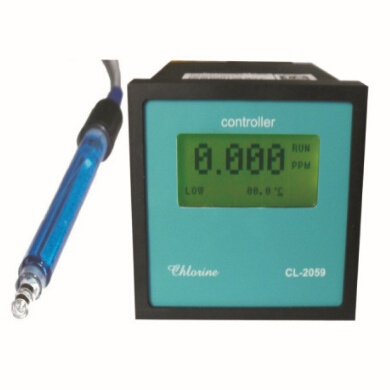

CL-2059 Industrial Online Residual Chlorine Analyzer can display residual chlorine (total chlorine, CO2), temperature. This analyzer is mainly used for measurement and chlorination control of residual chlorine, total chlorine and CO2 etc occasion. It is widely used in such industries as water supply, drinking water, water purification, industrial pure water, swimming pool disinfection etc.


Features

1.       The built-in protective software in the instrument provides various diagnoses.

2.       The watchdog design effectively enhances its interference community.

3.       The long-life touch screen is easy to use.

4.       Manual contact control.

5.       Constant-current groove based installation.

6.       Simple calibration, single-point calibration in medium of certain concentration.

7.       Residual chlorine, total chlorine and CO2 are integrated in a transmitter

8.       Touch screen display, operation in English



Technical Parameters

1.Display mode:

Touch screen (LCD)display

2.Electrode models

CL-2059-01 constant voltage online residual chlorine electrode

3.Constant groove type

  CL-2059-02

4.Measuring range:

0-2-ppm, 0-20ppm(switched to each other)

5.Accuracy:

0.001,0.01ppm

6.Operating temperature:

-40-70℃

7.Signal output:

420mA isolated current output, RS232

8.Control action:

relay ON/OFF

9.Dimension of the hole:

92x92mm

10.Overall dimension

  96(length)x96(width)x170(depth)mm

11.Set point

2 points

12.Control container:

250VAC/7A

13.Net weight

1.0 Kg



Standard Configuration

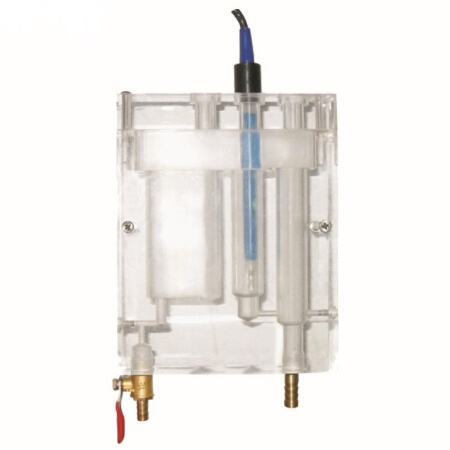

CL-2059 secondary meter, a constant voltage chlorine electrode, circulation groove (3-hole), standard cable 5 meters
