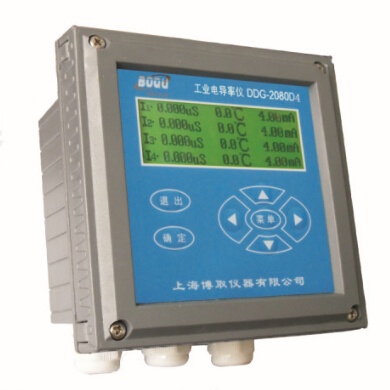

Product name : Multi-channel Online Conductivity Controller
Product No. : DDG-2080D
|
Details: |
Overview
DDG-2080D conductivity meter can choose between two to four channels, a multi channel conductivity meter is equivalent to two to four conductivity meter. Features Customers can arbitrarily choose Dual channel conductivity meter, three channel conductivity meter or four channel conductivity meter. All the channels are mutually independent, none interfering, and most can be connected with four electrodes at the same time. English liquid crystal display, English menu operation. Computer-based: It adopts the high-performance CPU chips, high-precision AD conversion technology and SMT technology to complete the multi-parameter measurement, temperature compensation and automatic rang switching, with high precision and good repeatability. Phase-sensitive detection: With such detection, the impact of wires on conductivity measurement can be eliminated. 25℃ conversion: Temperature compensation automatically measured / manual input. Waterproof and dustproof design: The protection grade is IP65, and it is suitable for outdoor use. Technical Parameters 1. Standard: JB/T 6855-93 2.Conductivity measuring range : 0.01~20μS/cm(Electrode: K=0.01) 0.1~200μS/cm(Electrode: K=0.1) 1.0~2000μS/cm(Electrode: K=1.0) 10~20000μS/cm(Electrode: K=10.0) 3. Intrinsic error of the electronic unit: conductivity: ±0.5%FS, temperature: ±0.3℃ (0~60℃ ). 4. Range of automatic temperature compensation: 0~99.9℃, 25℃ as the reference temperature. 5. Water sample tested: 0~99.9℃, 0.6MPa. 6.Intrinsic error of the instrument : conductivity: ±1.0%FS, temperature: ±0.5℃ 7. Automatic temperature compensation error of the electronic unit: ±0.5%FS 8. Repeatability error of the electronic unit: ±0.2%FS±1 Unit 9. Stability of the electronic unit: ±0.2%FS±1 unit/24h 10. Isolated current output: 4~20mA (load<750Ω) 11. Output current error: ≤±l%FS 12. Error of electronic unit caused by ambient temperature: ≤±0.5%FS 13. Error of the electronic unit caused by the supply voltage: ≤±0.3%FS 14. The instrument channel has two to four channels for selected; all the channels are mutually independent. (When ordering, please specify the number of channels, it will matching dual channel if not specified.) Data of each channel are measured and displayed at the same time , without switching display. 15. Power supply: AC 220V±22V, 50Hz±1Hz; DC24V (Optional) 16. Protection grade: IP65 17. Overall dimension: 146 (length) x 146 (width) x 108 (depth) mm; dimension of the hole: 138 x 138mm 18. Weight: 0.5kg 19. Working conditions: ambient temperature: 0~ 20. The conductivity electrodes with the following five constants are usable: K=0.01, 0.1, 1.0, 10.0, and 30.0. When ordering, please specify the electrode constant. |
