YANTAI STARK INSTRUMENT CO., LTD.

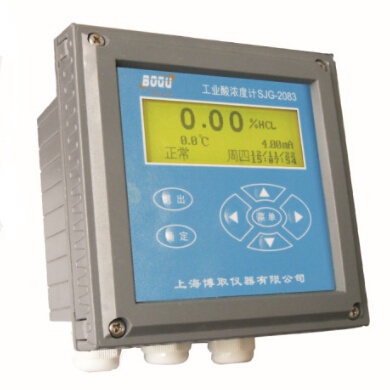

Intelligent: SJG-2083 English On-line Acid Concentration Meter adopts high-precision AD conversion and

single chip microcomputer processing technologies. It can be used for the measurement of the HCL

(sulphuric nitric acid) acid concentration and temperature, automatic temperature compensation, automatic range

switching and elf-checking.

Reliability: All the components are arranged on one circuit board. No complicated functional switch, adjusting

knob or potentiometer is arranged on this instrument.

Phase sensitive detection: Eliminating the influence of conductors on the measurement of hydrochloric acid concentration.

1.Measuring range: (0～10)% HCL; (0.00～30.00)%H₂SO₄;
                                (0.00～15.00)%HNO₃; temperature: 0～99.9℃ (0～150℃ Option)

2. Intrinsic error of electronic units: concentration: ±1.0%; temperature: ±0.3℃

3. Range of automatic temperature compensation: 0～99.9℃

4. Solution tested: 0～99.9℃, 0.6MPa

5. Intrinsic error of the instrument: concentration: ±2.0％ (the error may be less than 0.05% after usual point

calibration.)

Temperature: ±0.5℃(0.0℃≤T≤80.0℃)

6. Repeatability error of the electronic unit: ±1.0%

7. Stability of the electronic unit: ±1.0%/24h

8. Isolated current output: 4～20 mA (load <750Ω)

9. Output current error: ≤±1%FS

10. Compensation range of the temperature coefficient: (0-10.0)% /℃ (adjustable)

11. Alarm relay: AC 220V, 3A

12. Communication interface: RS485 (optional)

13. Power supply: AC220V±22V, 50Hz±1HZ, DC24V(optional)

14. Protection grade: IP65

15. Clock accuracy: ±1 minute/month

16. Data storage capacity: l month (1 point/5 minutes)

17. Weight: 0.8kg

18. Overall dimension: 146 (length) x 146 (width) x 108 (depth) mm; dimension of the hole: 138 x 138mm

19. Working conditions: ambient temperature: 0-60℃; relative humidity <85%
